The accidental thermal engineer: Can we know Tj by looking at Tcase?

A question regularly asked by our customers is “Can I determine the junction temperature (Tj) of my MOSFET from its case temperature (Tcase)?”.

At the end of my previous post – Top Clip, I mentioned we would be moving on to the subject of top-side cooling next. While we are definitely going there, I’d like to cover one other topic first, which will ultimately form part of the overall top-side cooling story.

A question regularly asked by our customers is “Can I determine the junction temperature (Tj) of my MOSFET from its case temperature (Tcase)?”. This is a perfectly reasonable thing to ask because we certainly want to know whether our MOSFETs are running at a safe temperature in-circuit, but at the same time determining Tj in-circuit can be extremely difficult. On the other hand, Tcase can often be determined quite easily by using a thermocouple or (preferably) a thermal camera. So, can we infer Tjfrom Tcase? This question has arisen so often that we recently performed a series of experiments to determine if such a correlation between Tj and Tcase does indeed exist.

To carry out this experiment we need a method of applying a constant, known power dissipation (PD) to a device whilst simultaneously monitoring its steady-state Tj. Fortunately such a method exists and is thoroughly documented in JEDEC standard JESD51-1. This describes how a MOSFET body diode can be used simultaneously as both a heating element and calibrated temperature sensor. JESD51-2 describes a standardized test environment so we can use that too, and off-the-shelf test equipment for carrying out thermal analysis is available from various manufacturers including Analysis Tech and Mentor Graphics.

Most of the queries we received on this subject relate to LFPAK56 devices, so we’ll focus on those in this experiment, and we’ll carry out the tests for three different PCB copper areas and a range of power dissipations. Add a thermal camera to measure Tcase on the top of the device and we’re ready to go!

In the graph below you can see the results.

Figure 1 Measured Tj and Tcase v PD for an LFPAK56 device on various PCBs

The graph of Figure 1 demonstrates that Tj and Tcase are indeed very close in most cases  – with the worst-case difference being around 4% for the 10×10 mm PCB. Of course, as these are real measurements we also have to consider that the measurement methods will have their own accuracy limits, and these are included in the graph as vertical error bars. If I carry out thermal simulations of similar device and PCB setups then the Tj and Tcase results are even closer, as can be seen in Figure 2. This time, the temperatures are almost identical.

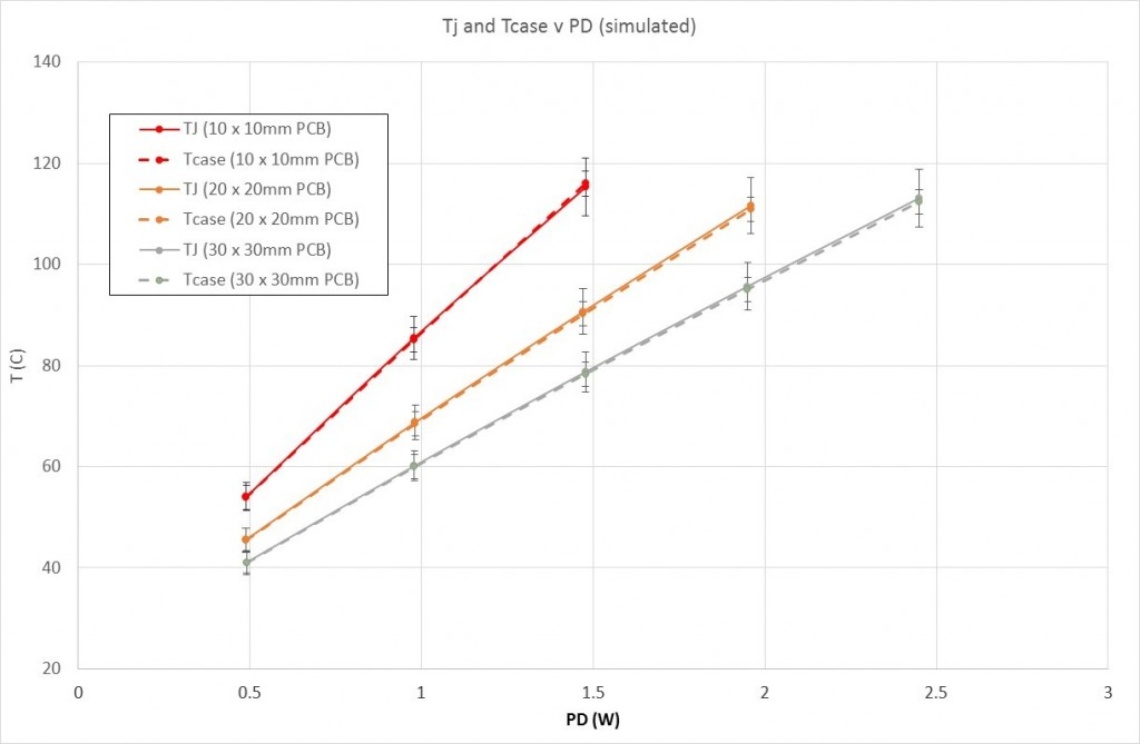

Figure 2 Simulated Tj and Tcase v PD for an LFPAK56 device on various PCBs

This is a very useful result as it would tend to suggest that, for the LFPAK56 package at least, we can consider Tj and Tcase to be almost the same with a reasonable degree of accuracy. It’s also probably fair to say that this is another example of a non-intuitive result! In my next post I’ll return to this subject and consider why Tj and Tcase are so similar. In the meantime, the interested reader might like to ponder for themselves reasons why Tj @ Tcase (hint: and it doesn’t really have anything to do with thermal resistances).
